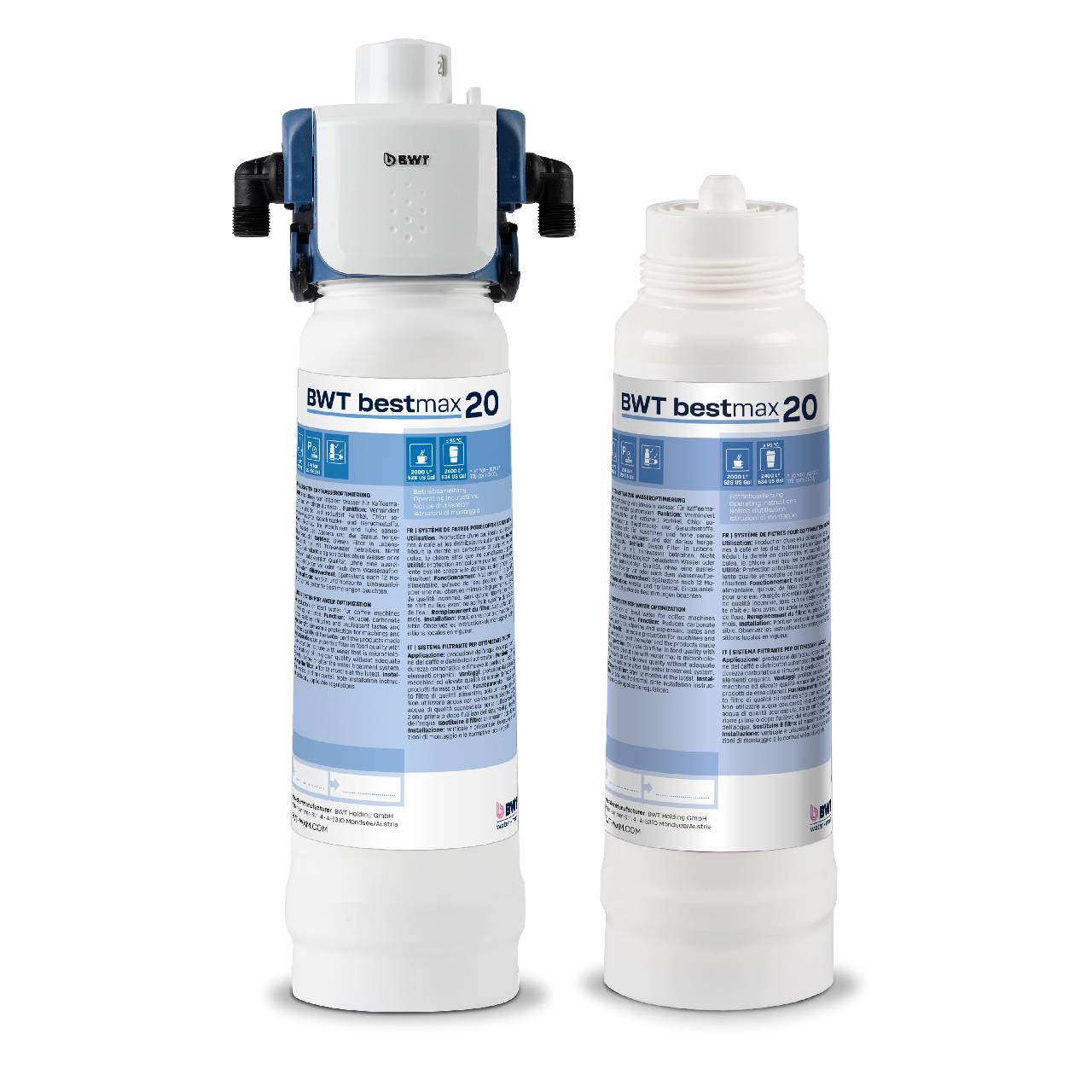

BWT bestmax

The all-rounders 


More information
  • Universal filter system for water optimisation in the gastronomy sector
  • Protection of the machine technology against limescale deposits, particles, off-flavour components and chlorine
  • Simple installation via universal BWT besthead FLEX connection technology
  • Economic use for any water requirements thanks to numerous filter sizes
  • Space-saving design that is very easy to handle
  • Ensures best protection of technical equipment and the quality of all products made using it
Springe zu

Product details


BWT bestmax is the simple and prac­tical all-​round filtra­tion solu­tion devel­oped for the numerous require­ments in gastronomy. For unique coffee water, ideal water for vending machines and optimal pure steam for ovens and combi­na­tion steamers. Thanks the new High-​Efficiency-​Technology (HET), water opti­mi­sa­tion is even more effi­cient. The result: consis­tently high quality of all hot and cold bever­ages in cups and mugs, in the kitchen and in the bakery, for all foods and baked goods.

Technical advantages of BWT bestmax at a glance:

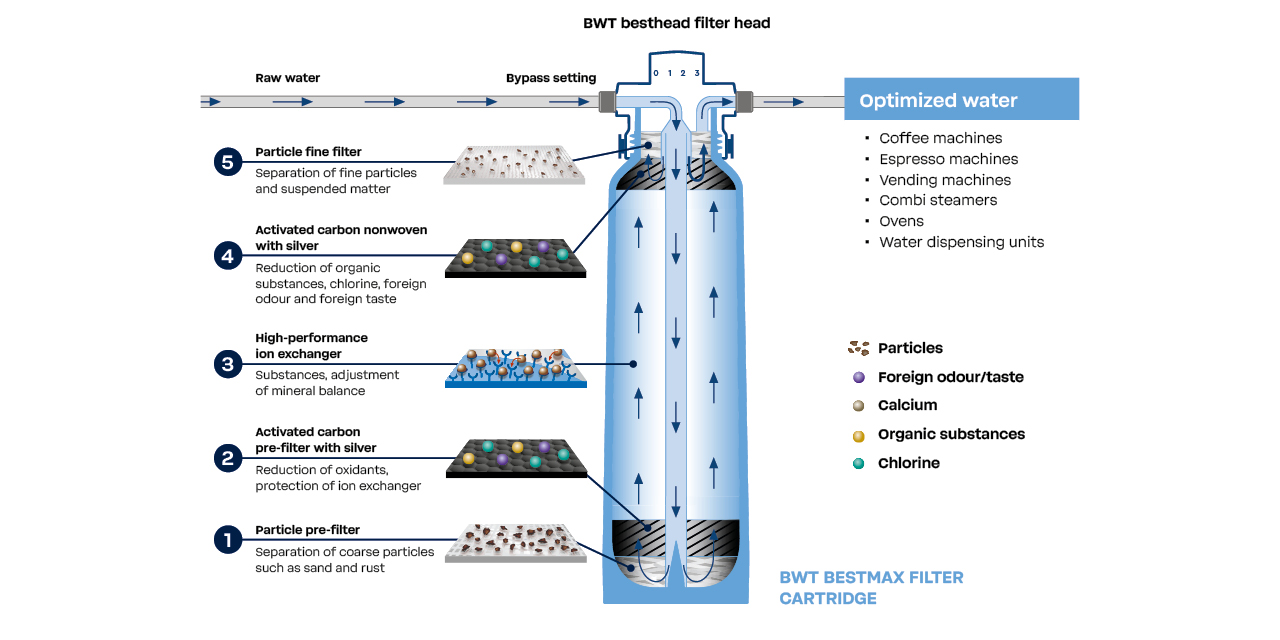

  • 5-stage filtration
  • Highly efficient limescale protection
  • Activated charcoal fleece for consistently crystal-clear water
  • Filtration, also of bypass water
  • Ease of handling when replacing the filter
  • Horizontal or vertical installation

Technical details

BWT bestmax type

X

S

V

M

L

XL

2XL

Connection thread (in/out), (1)

variable

variable

variable

variable

variable

variable

variable

Inlet pressure,
min. – max. in bar

2 – 8

2 – 8

2 – 8

2 – 8

2 – 8

2 – 8

2 – 8

Water temperature,
min. – max. in °C

4 – 30

4 – 30

4 – 30

4 – 30

4 – 30

4 – 30

4 – 30

Ambient temperature,
min. – max. in °C

4 – 40

4 – 40

4 – 40

4 – 40

4 – 40

4 – 40

4 – 40

Total height without bracket (A) in mm, approx.

280

360

420

475

500

500

574

Total height with bracket (B) in mm, approx.

300

385

445

500

530

530

600

Connection height (C) in mm

230

310

370

425

450

450

520

Distance to floor (D) in mm

65

65

65

65

65

65

65

Installation length (E) in mm

125

125

125

125

125

125

125

Ø filter cartridge (F) in mm

88

88

115

130

145

145

185

Weight in kg, approx. (dry/wet)

0.5/1.1

0.9/1.5

2.1/3.2

2.4/4.2

3.4/5.9

3.8/6.0

7.5/11.0

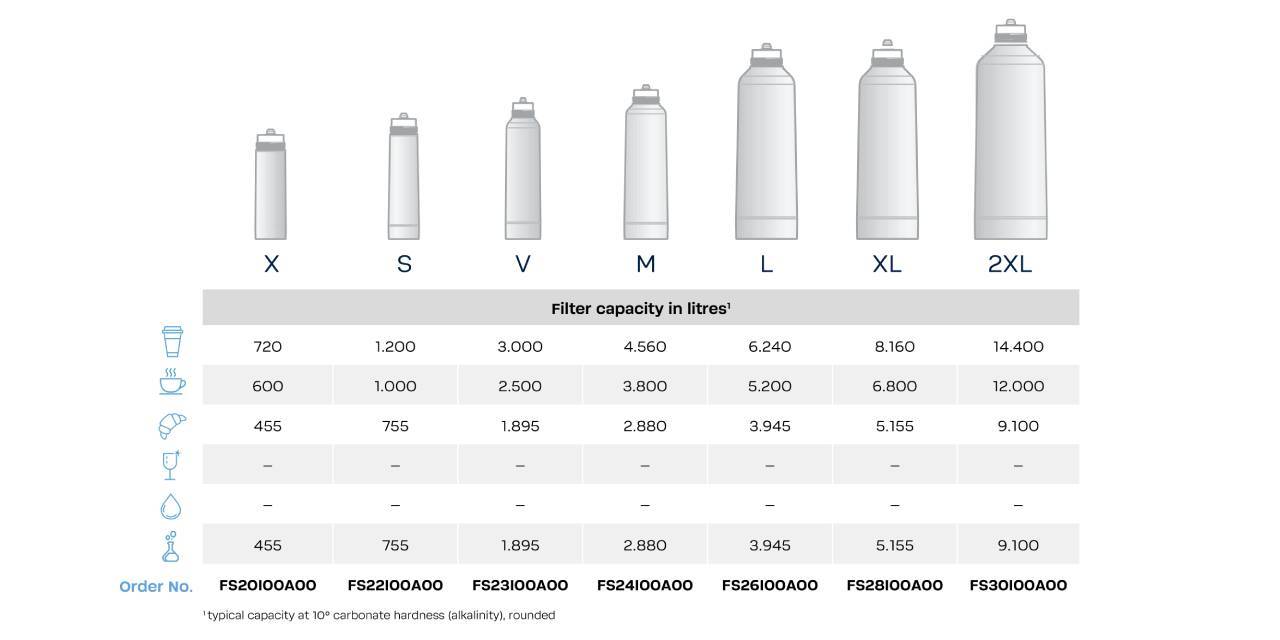

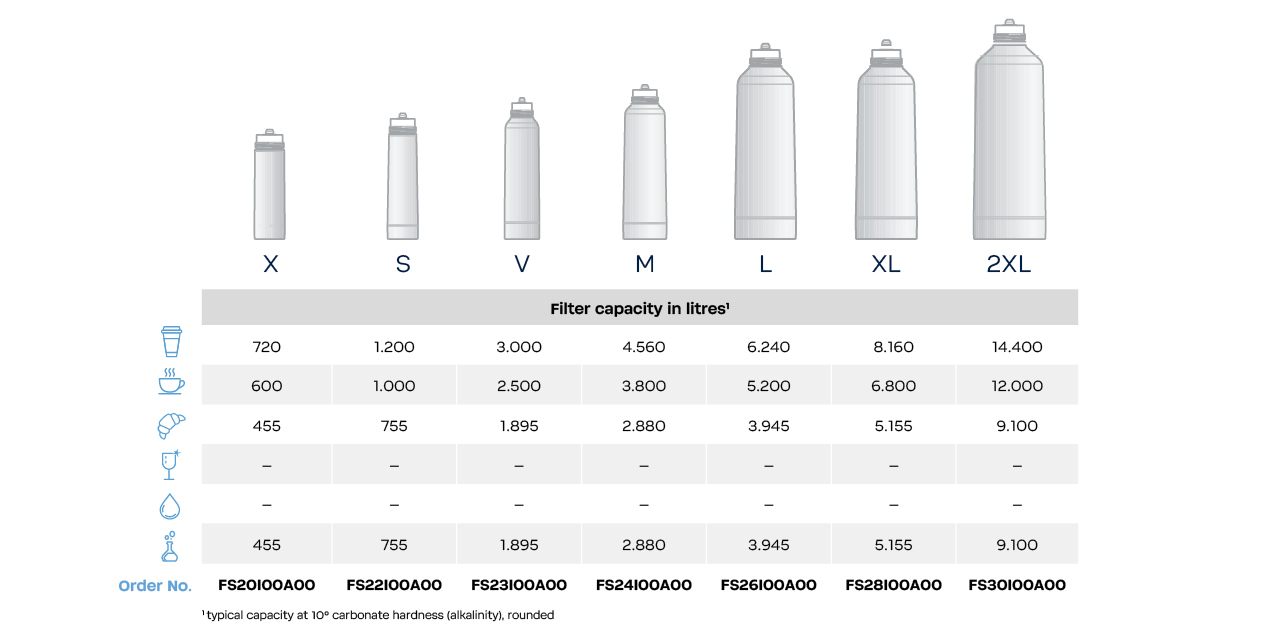

Order no. of filter cartridge

FS20I00A00

FS22I00A00

FS23I00A00

FS24I00A00

FS26I00A00

FS28I00A00

FS30I00A00

(1) Connection thread options with BWT besthead FLEX
