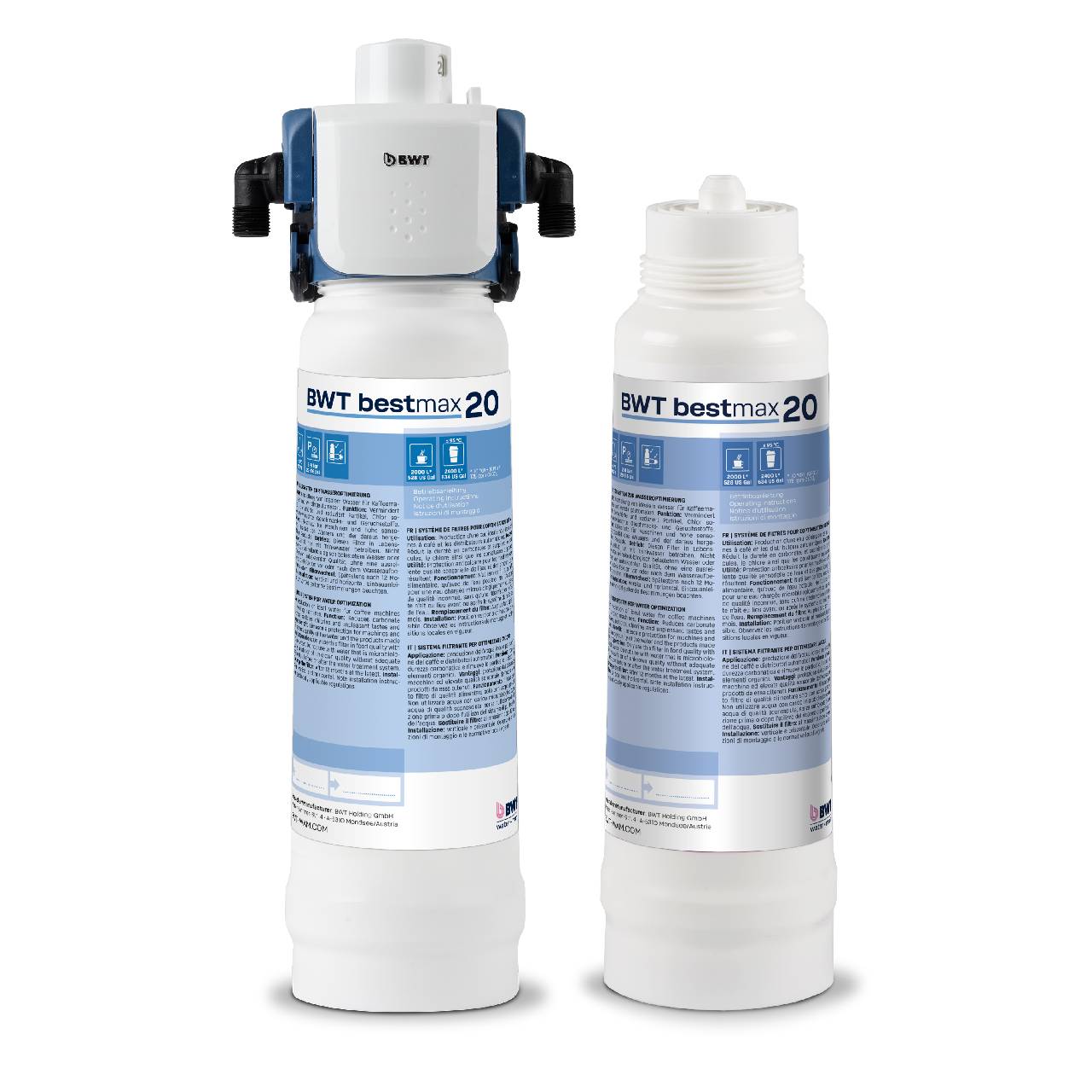

BWT bestmax Typ |
X |
S |
V |
M |
L |
XL |
2XL |
---|---|---|---|---|---|---|---|
Anschlussgewinde (in/out), (1) |
variabel |
variabel |
variabel |
variabel |
variabel |
variabel |
variabel |
Eingangsdruck, |
2 – 8 |
2 – 8 |
2 – 8 |
2 – 8 |
2 – 8 |
2 – 8 |
2 – 8 |
Wassertemperatur, |
4 – 30 |
4 – 30 |
4 – 30 |
4 – 30 |
4 – 30 |
4 – 30 |
4 – 30 |
Umgebungstemperatur, |
4 – 40 |
4 – 40 |
4 – 40 |
4 – 40 |
4 – 40 |
4 – 40 |
4 – 40 |
Gesamthöhe ohne Bügel (A) in mm, ca. |
280 |
360 |
420 |
475 |
500 |
500 |
574 |
Gesamthöhe mit Bügel (B) in mm, ca. |
300 |
385 |
445 |
500 |
530 |
530 |
600 |
Anschlusshöhe (C) in mm |
230 |
310 |
370 |
425 |
450 |
450 |
520 |
Abstand zum Boden (D) in mm |
65 |
65 |
65 |
65 |
65 |
65 |
65 |
Einbaulänge (E) in mm |
125 |
125 |
125 |
125 |
125 |
125 |
125 |
Ø Filterkerze (F) in mm |
88 |
88 |
115 |
130 |
145 |
145 |
185 |
Gewicht in kg, ca. (trocken/nass) |
0,5/1,1 |
0,9/1,5 |
2,1/3,2 |
2,4/4,2 |
3,4/5,9 |
3,8/6,0 |
7,5/11,0 |

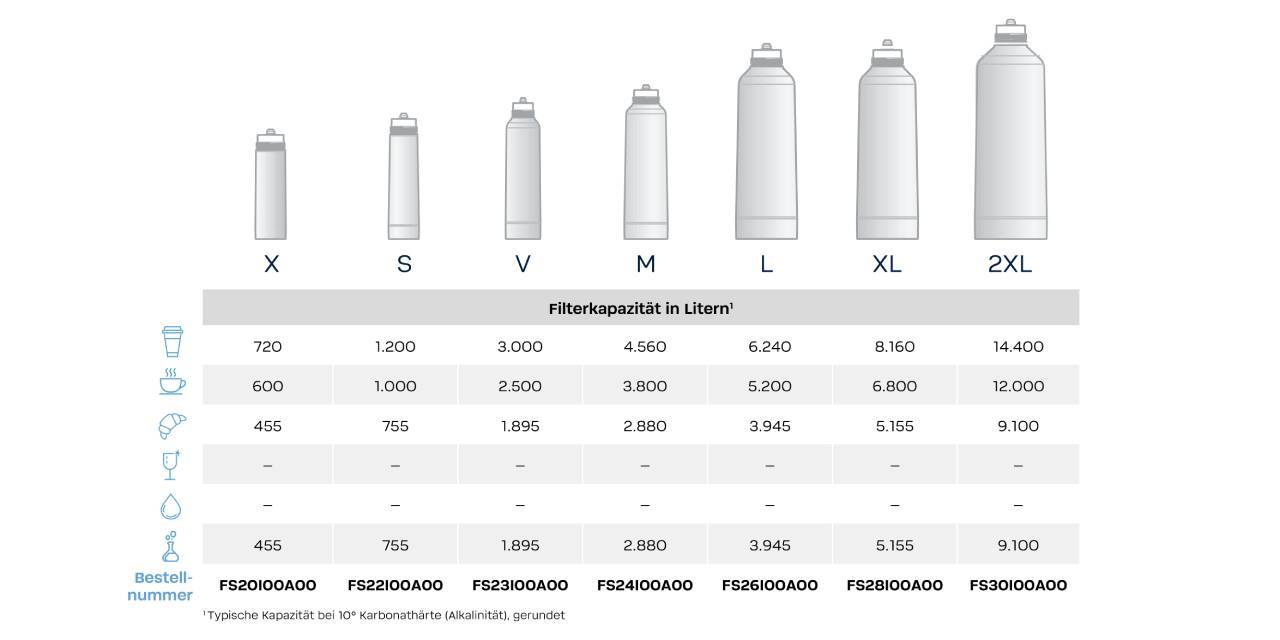

Bestell-Nr. Filterkerze |
FS20I00A00 |
FS22I00A00 |
FS23I00A00 |
FS24I00A00 |
FS26I00A00 |
FS28I00A00 |
FS30I00A00 |
(1) Optionen zu Anschlussgewinde mit BWT besthead FLEX
