BWT bestdemin PLUS

The laboratory experts


More information
  • Special multi-stage filter for fully demineralising water
  • Compliant with DIN EN 13060 and DIN EN 285
  • For production of demineralised water for laboratories
  • For pressurised steam autoclaves used for sterilisation in the medical and dental industries
  • Easy to install with universal BWT besthead FLEX connection technology
  • Space-saving design and very simple handling
Springe zu

Product details

BWT best­demin PLUS is a filter ­system for producing deminer­alised water by simple means. This multi-​stage ­filter features a mixed-​bed ion exchanger that removes all dissolved salts from the in-​flowing raw water.

The resulting deminer­alised water complies with DIN EN 13060 and DIN EN 285 require­ments, and is perfectly suited for labo­ra­tory use to correctly prepare reagents or to clean equip­ment, leaving devices free of any residue. BWT best­demin PLUS delivers deminer­alised water for pres­surised steam auto­claves in medical and dental ster­il­i­sa­tion appli­ca­tions as well as for profes­sional steam ironing systems in laundries and dry cleaners.

Advantages of BWT bestdemin Plus at a glance:

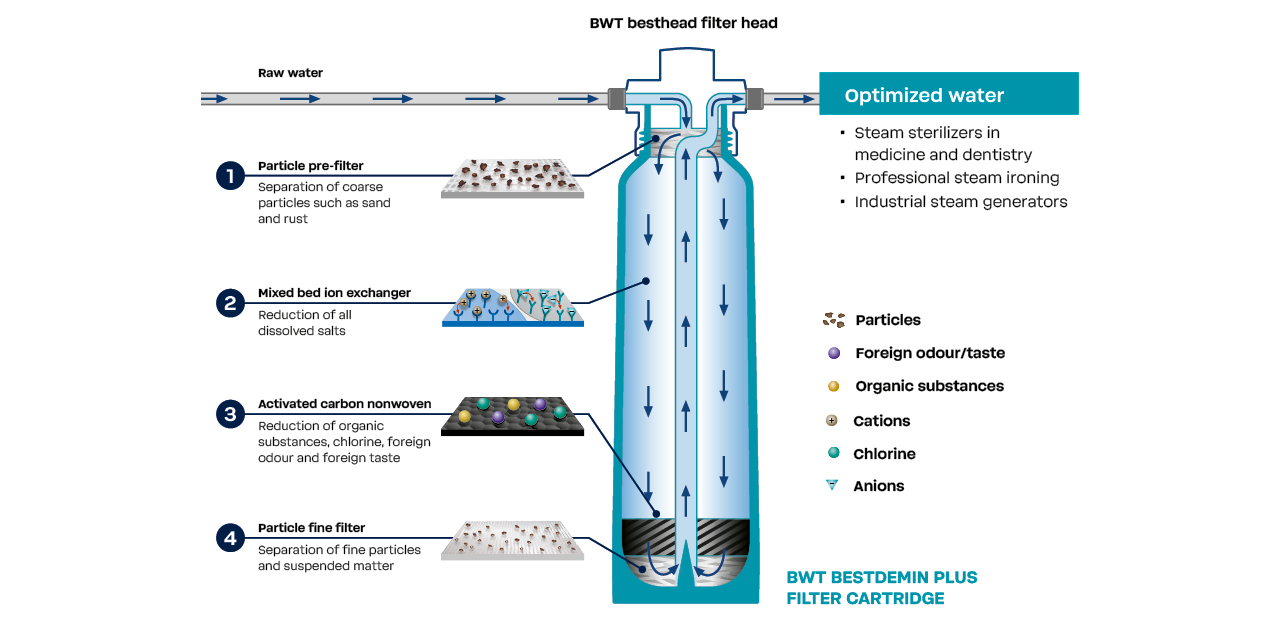

  • 4-stage filtration
  • Integrated particle pre-filtration
  • Activated carbon fleece to protect the ion exchanger
  • Mixed-bed ion exchanger technology
  • Filtrate compliant with DIN EN 13060 and DIN EN 285
  • Highly efficient compact demineralisation
  • Ease of handling when replacing the filter

Technical details

BWT best­demin PLUS type V XL S
Connection thread (in/out), (1) variable variable variable
Inlet pressure, min. – max. in bar 2–8 2–8 2–8
Water temperature, min. – max. in °C 4–30 4–30 4–30
Ambient temperature, min. – max. in °C 4–40 4–40 4–40
Total height without bracket in mm, approx. 420 502 580
Total height with bracket in mm, approx. 445 527 600
Connection height in mm 366 448 520
Distance to floor in mm 65 65 65
Installation length in mm 125 125 125
Ø filter cartridge in mm 110 147 185
Weight in kg, approx. (dry/wet) 2.1/3.2 3.9/5.6 7.5/11.0

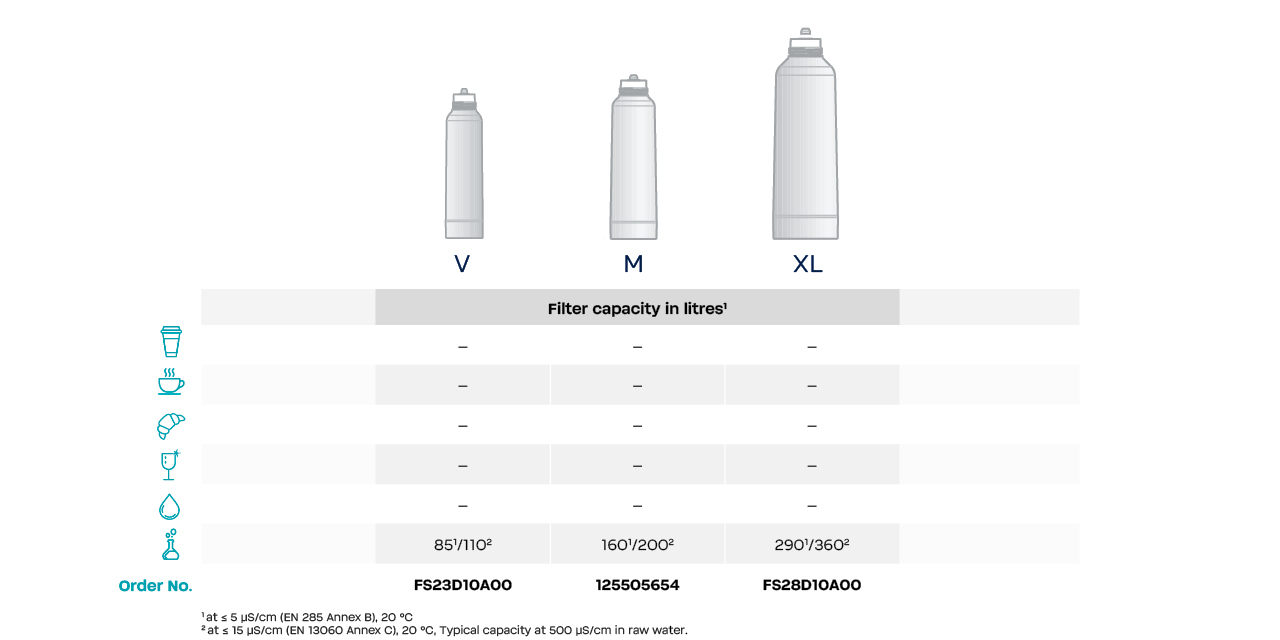

Order no. of filter cartridge FS23D10A00 FS28D10A00 FS30D10A00

(1) Connection thread options with BWT besthead FLEX
