BWT bestdemin PLUS

The laboratory Experts

More information


  • Filter system for full desalination of drinking water for medical technology and in laboratories
  • Removes all dissolved salts from drinking water
  • Avoids salt deposits on sensitive lab equipment, such as steam generating equipment
Springe zu

Product details

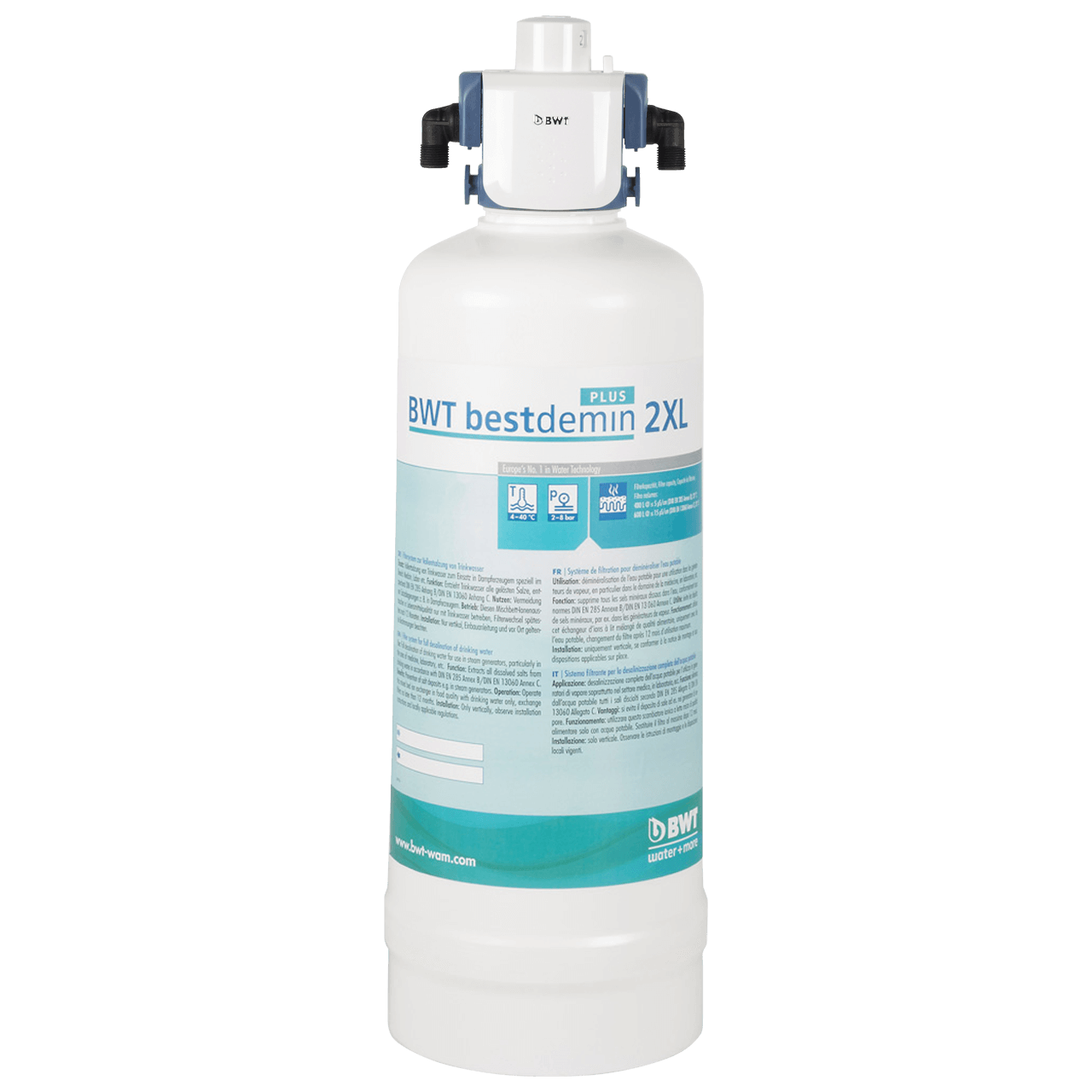

BWT best­demin PLUS is a filter ­system for producing deminer­alised water by simple means. This multi-​stage ­filter features a mixed-​bed ion exchanger that removes all dissolved salts from the in-​flowing raw water.

The resulting deminer­alised water complies with DIN EN 13060 and DIN EN 285 require­ments, and is perfectly suited for labo­ra­tory use to correctly prepare reagents or to clean equip­ment, leaving devices free of any residue. BWT best­demin PLUS delivers deminer­alised water for pres­surised steam auto­claves in medical and dental ster­il­i­sa­tion appli­ca­tions as well as for profes­sional steam ironing systems in laundries and dry cleaners.

Advantages of BWT bestdemin Plus at a glance:

  • 4-stage filtration
  • Integrated particle pre-filtration
  • Activated carbon fleece to protect the ion exchanger
  • Mixed-bed ion exchanger technology
  • Filtrate compliant with DIN EN 13060 and DIN EN 285
  • Highly efficient compact demineralisation
  • Ease of handling when replacing the filter

Tech­nical details

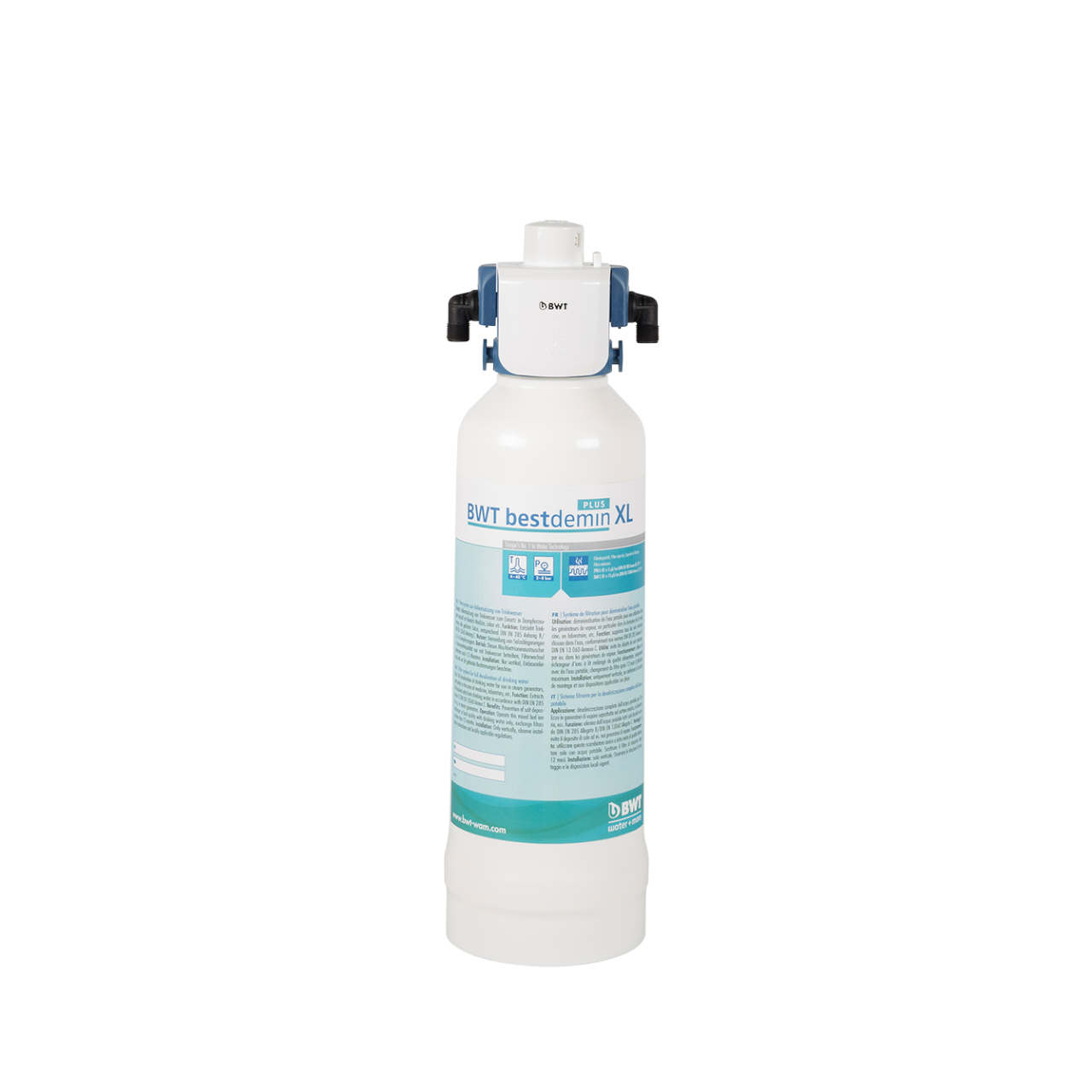

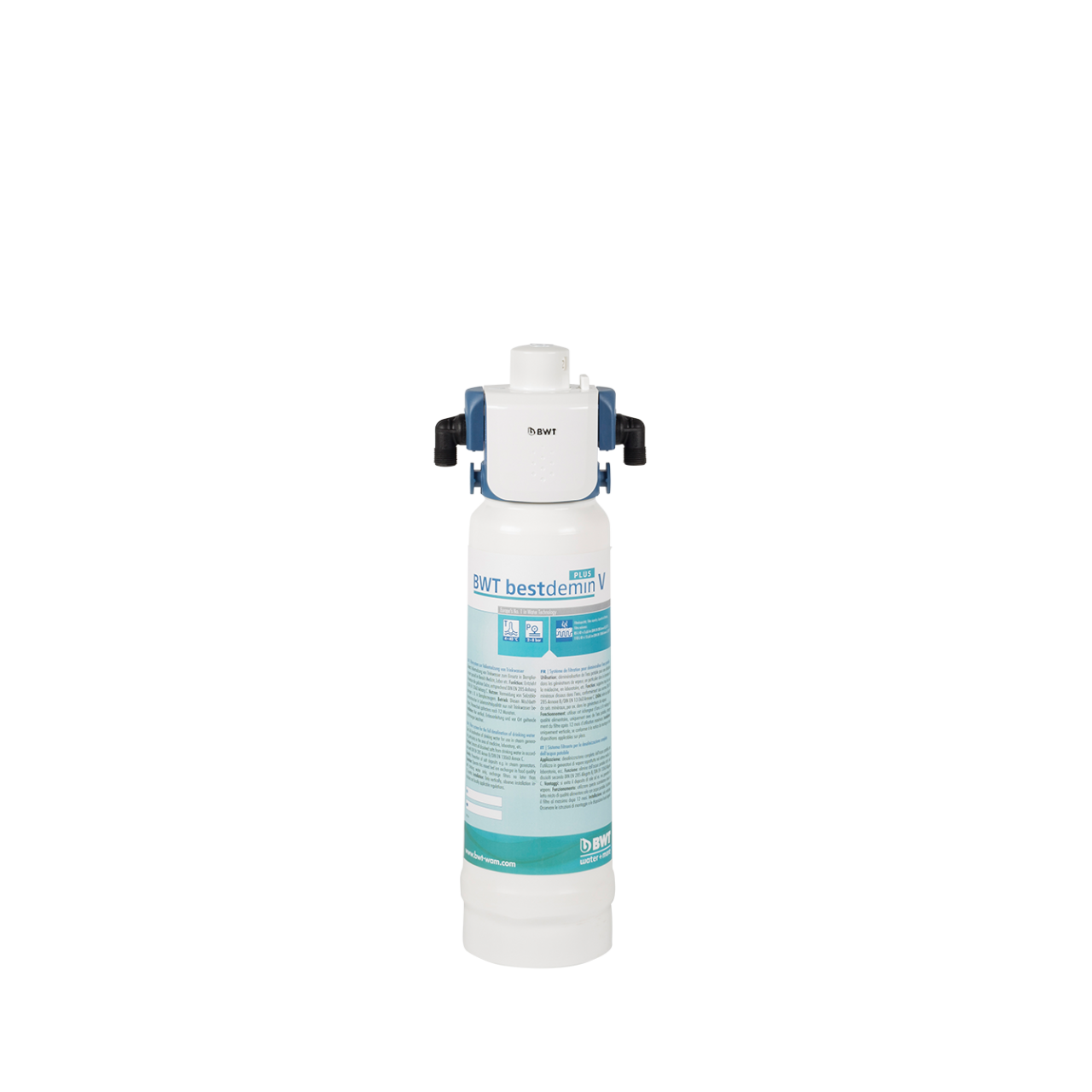

BWT best­demin PLUS type V XL
Connection thread (in/out), (1) variable variable
Inlet pressure, min. – max. in bar 2–8 2–8
Water temperature, min. – max. in °C 4–30 4–30
Ambient temperature, min. – max. in °C 4–40 4–40
Total height without bracket in mm, approx. 420 502
Total height with bracket in mm, approx. 445 527
Connection height in mm 366 448
Distance to floor in mm 65 65
Installation length in mm 125 125
Ø filter cartridge in mm 110 147
Weight in kg, approx. (dry/wet) 2.1/3.2 3.9/5.6
Order no. of filter cartridge FS23D10A00 FS28D10A00

(1) Connection thread options with BWT besthead FLEX
