The Taste Experts

More information


  • Unique filter system for PREMIUM water for coffee and vending machines
  • For reliable limescale protection and water with top sensory characteristics
  • Unique with patented BWT Magnesium Technology
  • Mineralisation for higher magnesium content ensures optimum extraction results for coffee
  • Simple installation via universal BWT besthead FLEX connection technology
  • Space-saving design that is very easy to handle
Springe zu

Product details

BWT bestmax PREMIUM is an inno­v­a­tive filter system for opti­mizing water espe­cially for all hot bever­ages from coffee and vending machines. This filter reduces all unde­sir­able compo­nents such as limescale, parti­cles, off-flavours such as chlo­rine and organic compounds from the raw water.

As a pioneering inno­va­tion, this filter also features BWT Magne­sium Tech­nology, which enriches the water with valu­able magne­sium in exchange for calcium. In addi­tion to effec­tive limescale protec­tion, BWT bestmax PREMIUM thereby ensures outstanding results for hot bever­ages.

Technical advantages of BWT bestmax PREMIUM at a glance:

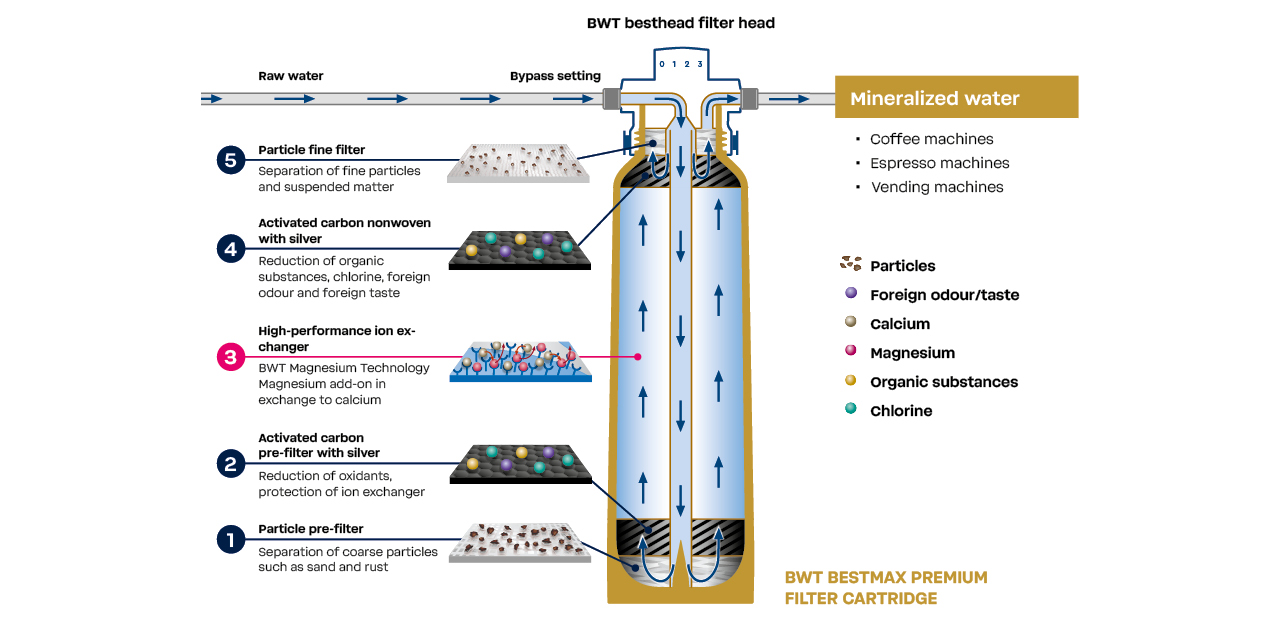

  • 5-stage filtration
  • Reliable protection against limescale for machines
  • Ideal mineralization for higher magnesium content
  • Activated charcoal fleece for consistently crystal-clear water
  • Filtration, also of bypass water
  • Ease of handling when replacing the filter
  • Horizontal or vertical installation

Technical details

BWT bestmax PREMIUM type S V M XL 2XL
Connection thread (in/out); (1) variable variable variable variable variable
Inlet pressure, min. – max. in bar 2–8 2–8 2–8 2–8 2–8
Water temperature, min. – max. in °C 4–30 4–30 4–30 4–30 4–30
Ambient temperature, min. – max. in °C 4–40 4–40 4–40 4–40 4–40
Total height without bracket in mm, approx. 360 420 475 502 580
Total height with bracket in mm, approx. 385 445 500 527 600
Connection height in mm 306 366 421 448 520
Distance to floor in mm 65 65 65 65 65
Installation length in mm 125 125 125 125 125
Ø filter cartridge in mm 88 110 130 147 185
Weight in kg, approx. (dry/wet) 0.9/1.5 2.3/3.2 2.8/4.2 4.0/6.0 7.8/11.0
Order no. of filter cartridge FS22P00A00 FS23P00A00 FS24P00A00 FS28P00A00 FS30P00A00

(1) Connection thread options with BWT besthead FLEX
