BWT bestclear EXTRA
The demineraliser
- Filter system for water demineralisation for autoclaves and for compact dishwashers used in the restaurant and catering industry
- Easy to install with universal BWT besthead FLEX connection technology
- No dried-on stains or streaks
- Minimise the need for detergents
- Brilliant shining crockery, glassware and cutlery, and no added effort for polishing
- Flawless foam formation in champagne and beer glasses
Product details
BWT bestclear EXTRA filter solutions serve to optimise water for dishwashing technology. Dining guests today attach great importance to quality and service. Restauranteurs and caterers who want to succeed in business must offer perfection down to the last detail.
BWT’s bestclear EXTRA filter system is a highly efficient tool for enhancing dishwashing technology, specially designed to prevent any dried-on residues from the dishwashing process, on crockery, glassware, or cutlery. The result is impressively convincing: flawlessly white crockery, brilliantly sparkling glassware and shining cutlery.
Technical advantages of BWT bestclear EXTRA at a glance:

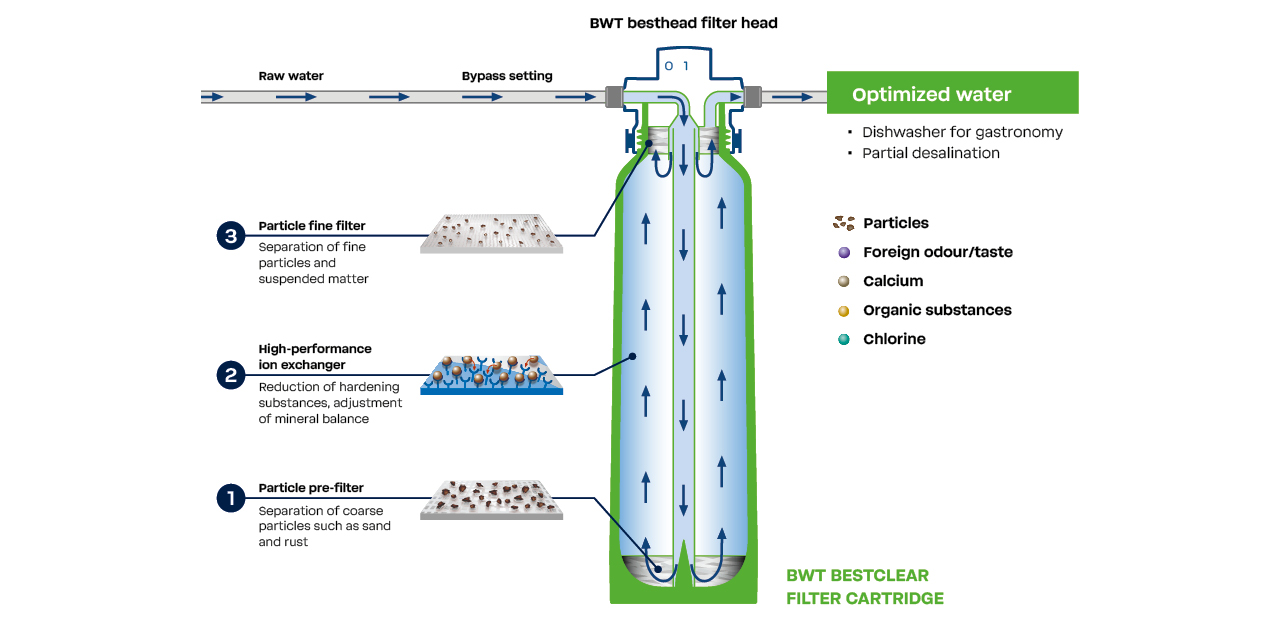

- 7-stage filtration for eliminating particles, lime and salts
- Substantial reduction of total salt content
- Activated charcoal fleece for consistently crystal-clear water
- Filtration also of bypass water
- Ease of handling when replacing the filter
Technical details
|

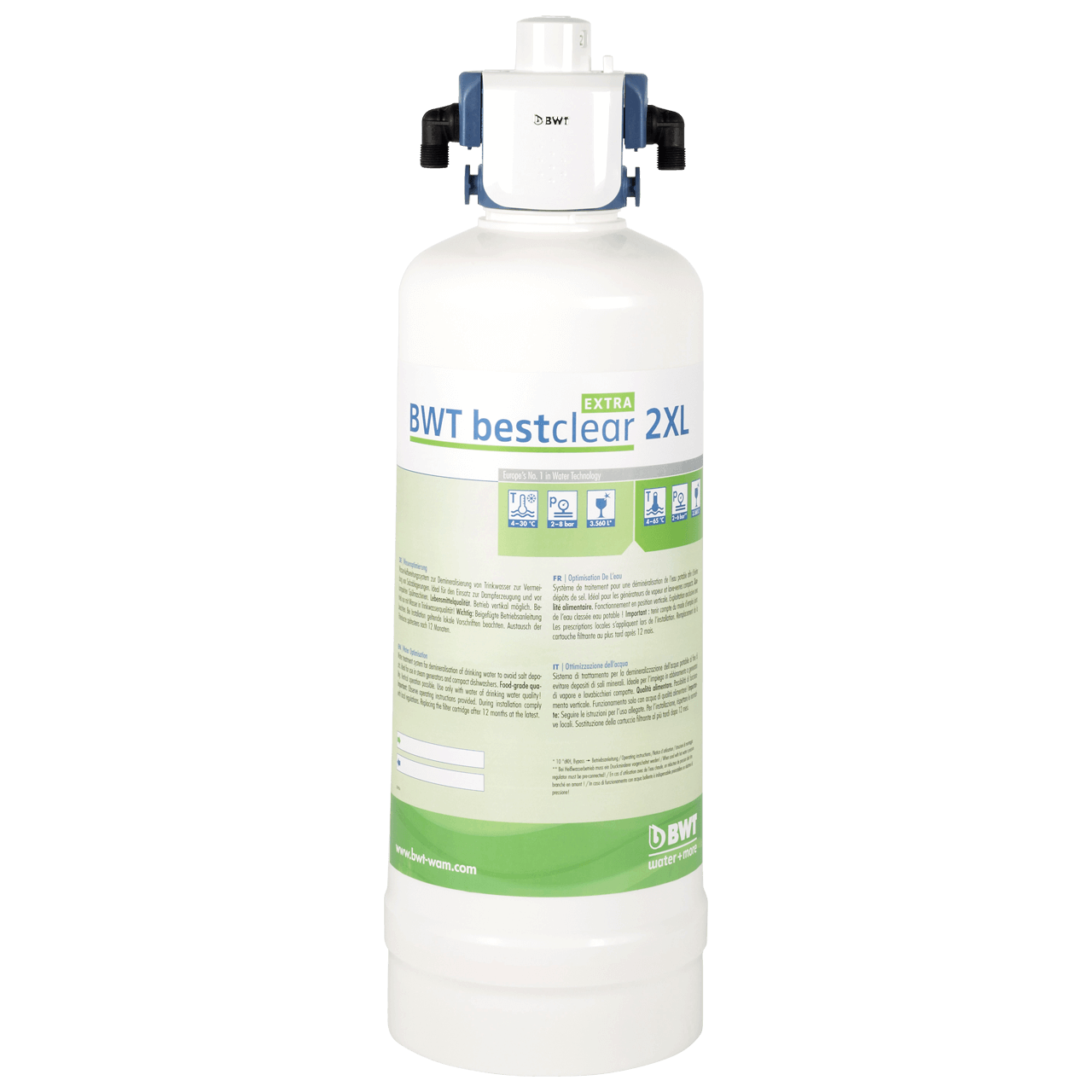

BWT bestclear EXTRA |
2XL |
|
|---|---|---|
|
Connection thread (in/out) (1) |
variable |
|
|
Inlet pressure hot/cold water, |
2 – 6** |
2 – 8 |
|
Water temperature, min. – max. in °C |
4 – 65** |
4 – 30 |
|
Ambient temperature, min. – max. in °C |
4 – 40 |
|
|
Total height without bracket (A) in mm |
570 – 580 |
|
|
Total height with bracket (B) in mm |
600 |
|
|
Connection height (C) in mm |
520 |
|
|
Distance to floor (D) in mm |
65 |
|
|
Installation length (E) in mm |
125 |
|
|
Ø filter cartridge (F) in mm |
185 |
|
|
Pressure loss in bar (at 100/200 L/h) |
0.15/0.45 |
|
|
Weight in kg, (dry/wet) approx. |
7.5/11.0 |
|
|
Order no. of filter cartridge |
FS30U10 |
|
** A pressure reducer must be installed upstream for hot water operation!
(1) Connection thread options with BWT besthead FLEX
