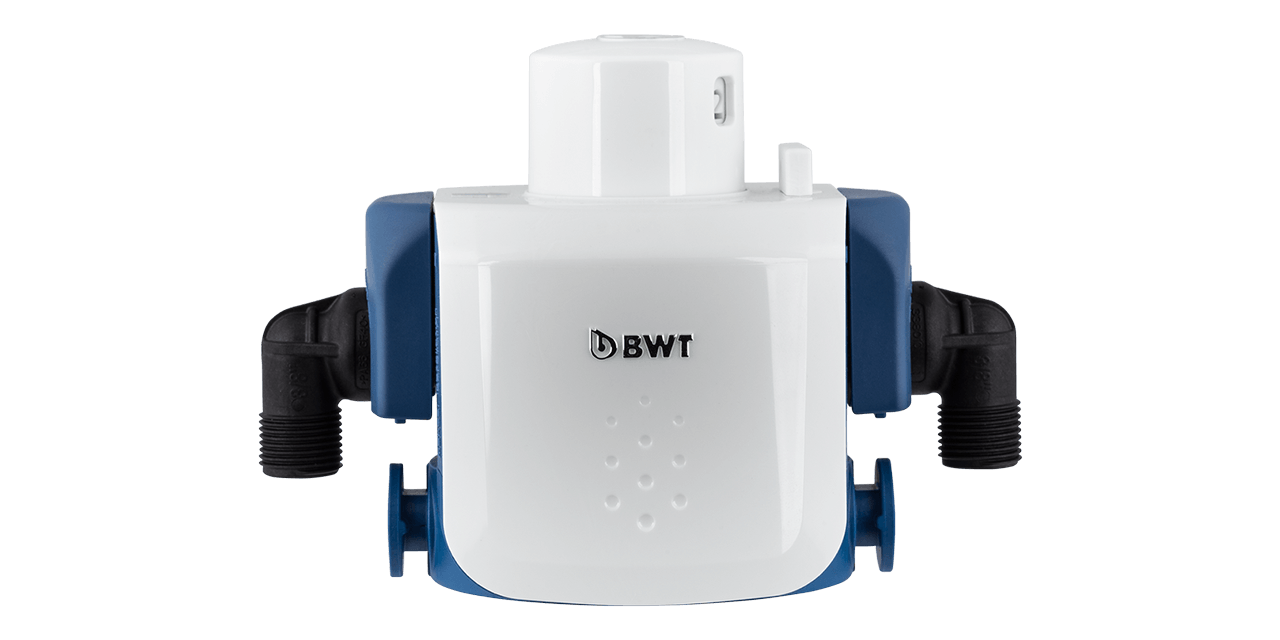

BWT besthead FLEX

FLEX filter head


More information
  • Universal BWT water+more filter head with innovative FLEX connection technology
  • Suitable for all standard BWT water+more filter cartridges
  • Ideal for any installation situation, especially in confined spaces
  • Extensive range of FLEX accessories available
Springe zu

Product details


Filter instal­la­tion is extremely simple even in confined spaces with BWT best­head FLEX, the filter head with the most flex­ible connec­tion tech­nology world­wide. The inno­v­a­tive FLEX tech­nology with angle adjust­ment in 30° stages enables the best possible organ­i­sa­tion of connec­tion hoses even in confined spaces. This saves space whilst ensuring maximum safety.

Addi­tional double nipples or tran­si­tion fittings are no longer required due to FLEX Insert compo­nents being directly connected to the filter head. A wide range of connec­tions and preassem­bled hoses to both raw water and the appli­ance are avail­able for instal­la­tion. All of them come with FLEX Insert connec­tions and are directly connected to the unique inter­face on the filter head, where a clip holds them securely in place without any need for a tool to release it. DVGW-​inspected check valves in the filter head on both the inlet and the outlet prevent water from flowing back into the filter cartridge or the water pipeline. BWT best­head FLEX and all acces­sory parts with FLEX Insert connec­tions are made from food-​safe mate­rials and can be used with all potable water systems world­wide.

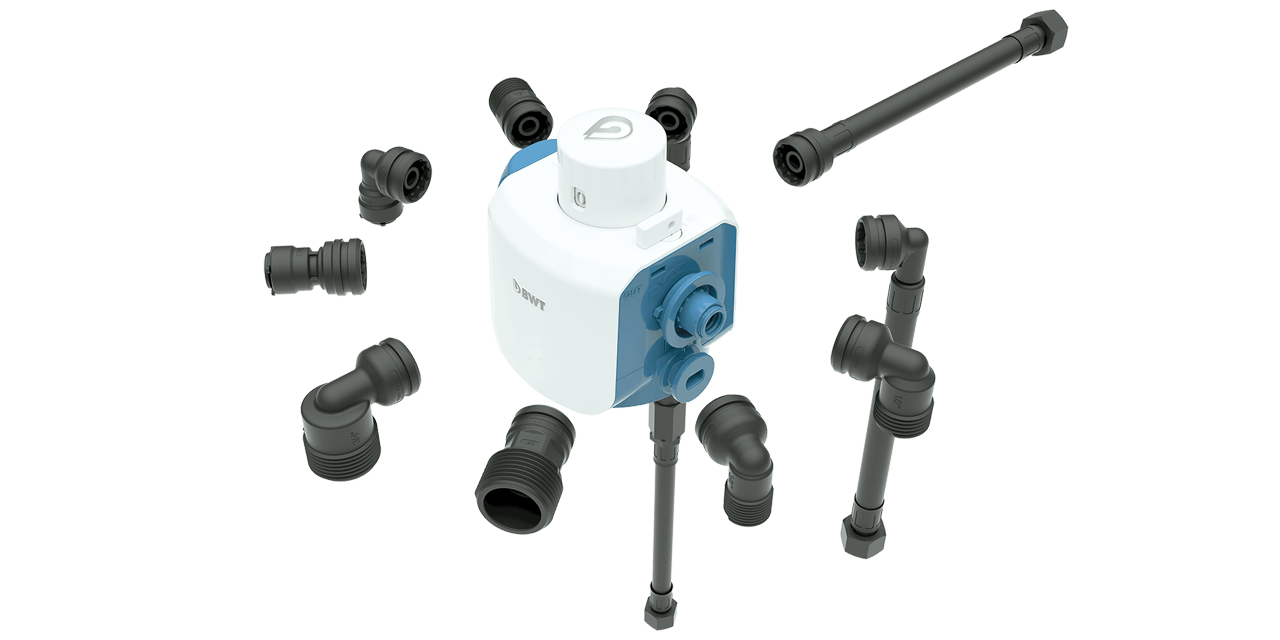

BESTHEAD FLEX
BESTHEAD FLEX

Technical advantages of BWT besthead FLEX at a glance:

  • Inte­grated vent valve and hose
  • Simple bypass setting with locking mech­a­nism
  • Auto­matic water stop for filter replace­ment
  • Two inte­grated DVGW-inspected check valves as stan­dard
  • Optional standard wall mount supplied
  • Compre­hen­sive FLEX connec­tion tech­nology is avail­able in many sizes

Technical details

BWT besthead FLEX

with 2 connection pieces, 90° elbow, FLEX insert, 3/8" AG

Inlet pressure, min.-max. in bar  2–8 
Water temperature, min.-max. in °C  4–30 
Ambient temperature, min.-max. in °C  4–40
Order no. Filter cartridge  FS00Z20A00 

Accessories – BWT besthead FLEX

Item number Description
FS00Z32A00

BWT FLEX 1 hose set

DN8 connection hose, 1.5 m, FLEX Insert 90° elbow made from GFP, cap nut FM 3/8"

FS00Z33A00

BWT FLEX 2 hose set

DN8 connection hose, 1.5 m, FLEX Insert 90° elbow made from GFP, cap nut FM 1/2"

FS00Z34A00

BWT FLEX 3 hose set

DN8 connection hose, 1.5 m, FLEX Insert 90° elbow made from GFP, cap nut FM 3/4"

FS00Z35A00

BWT FLEX 4 hose set

DN8 connection hose, 1.5 m, with ball valve, FLEX Insert 90° elbow made from GFP, cap nut FM 3/8"

FS00Z36A00

BWT FLEX 5 hose set

DN8 connection hose, 1.5 m, straight FLEX Insert made from GFP, cap nut FM 3/8"

FS00Z37A00

BWT FLEX 6 hose set

DN8 connection hose, 1.5 m, straight FLEX Insert made from GFP, cap nut FM 1/2"

FS00Z38A00

BWT FLEX 7 hose set

DN8 connection hose, 1.5 m, straight FLEX Insert made from GFP, cap nut FM 3/4"

125252207

BWT FLEX 8 hose set

DN8 connection hose, straight 1.5 m FLEX Insert x 90° elbow FM ¾" made of GFK

FS00Y66A00 Mounting bracket for assembly beneath the table
FS00Y73A00 Mounting bracket extension for wall mounting 2XL size filter cartridges
FS00Z39A00

BWT connection set besthead FLEX 1

1 x BWT besthead FLEX (filter head)

1 x connection hose with FLEX elbow and shut-off valve, 1500 mm, DN 8, 3/8" x 3/8"

1 x connection FLEX x AG 3/8" straight

1 x connection FLEX x AG 3/8" elbow

1 x reducer FM ¾" x AG 3/8" (plastic)

125297165

BWT besthead FLEX 2 connection set – HF

1x BWT besthead FLEX (filter head) with 2 straight connectors, AG 3/4"

1x connection hose FM 3/8" x FM 3/4", DN 10, 1500 mm

1x connection piece, 90° elbow, FLEX insert x AG 3/4" made of GRP

1x reducer FM 3/4" x AG 3/8" made of GRP

1x service pass

FS00Z21A00 Straight connection piece, FLEX insert, 3/8" made of GRP
FS00Z22A00 Straight connection piece, FLEX insert, ½" made of GRP
FS00Z23A00 Straight connection piece, FLEX insert, ¾" made of GRP
FS00Z24A00 Straight connection piece, FLEX Insert, John Guest plug-in connection 8 mm made of GRP
FS00Z25A00 Straight connection piece, FLEX Insert, John Guest plug-in connection 3/8" made of GRP
FS00Z26A00 Connection piece, 90° elbow, FLEX insert, 3/8" AG made of GRP
FS00Z27A00 Connection piece, 90° elbow, FLEX insert, 1/2" AG made of GRP
FS00Z28A00 Connection piece, 90° elbow, FLEX insert, 3/4" AG made of GRP
FS00Z29A00 90° elbow connection piece, FLEX Insert x John Guest plug-in connection Ø 8mm made of GRP
FS00Z41A00 FLEX connection piece x Ø 6 mm elbow John Guest
FS00Z42A00 FLEX connection piece x Ø 1/4" elbow John Guest
FS00Z40A00 FLEX T-connector
